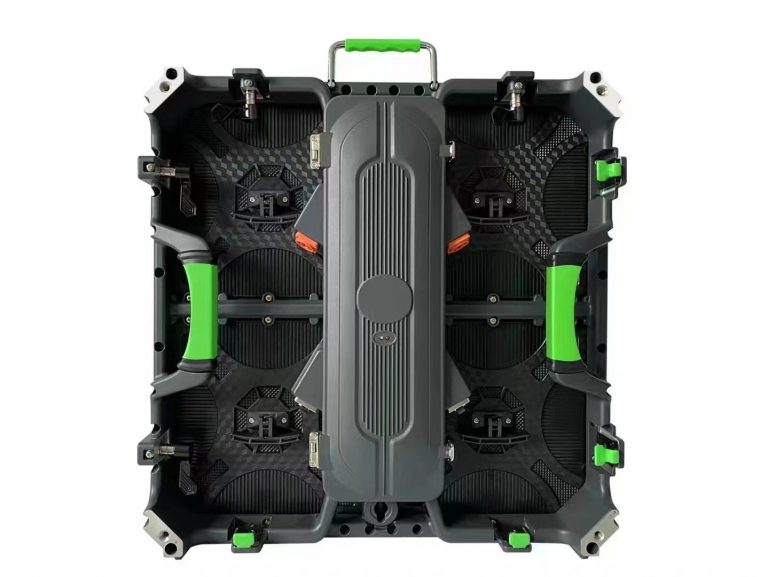

500N1 500*500mm
Indoor and outdoor die-cast aluminum cabinet.
P1.9/ P2.6/ P2.976 / P3.91
Cabinet size: 500*500 *75mm
Internal cable connections
Rear serviceable
Weight: 7.5kg

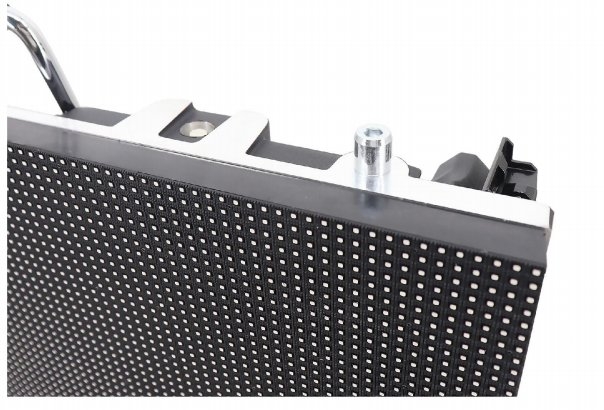

1. It has two quick-locking devices on the left and right sides, which can ensure faster mounting speed and better screen flatness.
2. It has protective feet on the bottom of the housing to protect the edges of the LED modules.
3. IP65 dustproof and waterproof withstands severe weather conditions during outdoor activities.
4. Die-cast aluminum is corrosion-resistant.
5. Bendable for options: adjustable between -15° and +15°.
6. 16-bit high grayscale/3840Hz high refresh rate, support 4K video.
500N2 500*500mm Wide Angle
Indoor and outdoor die-casting aluminum cabinet.
P1.9/ P2.6/ P2.976 / P3.91
Cabinet size: 500*500*75mm
Internal cable connections or Without internal cable
Rear service
Weight: 8kg
1. 90 Degree Splicing Installation It is a 45 degree oblique edge LED display, which can form a 90 degree angle screen.
2. It has two quick locking devices on the left and right sides, which can ensure faster assembly speed and better flatness of the screen.

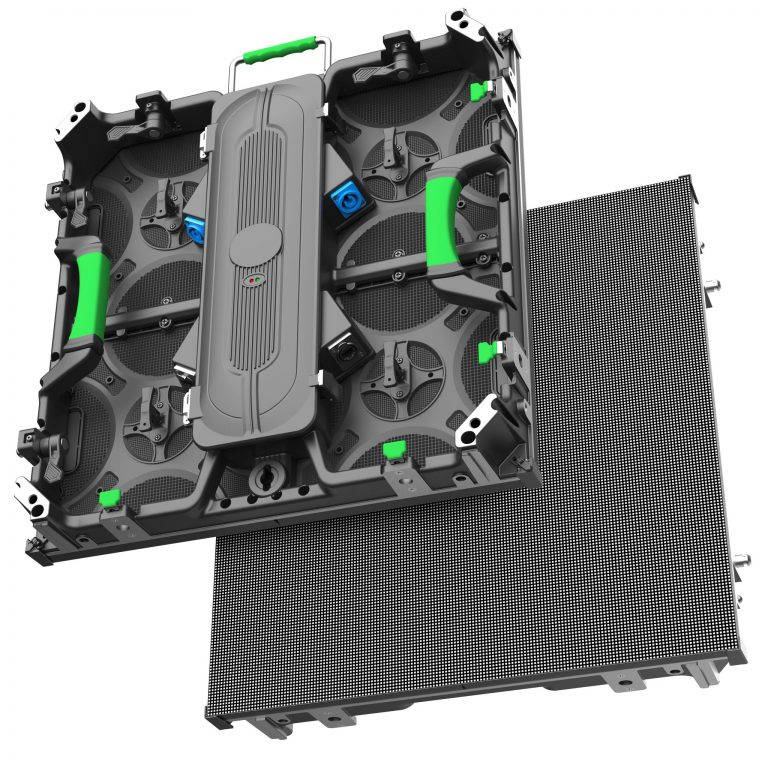

500H1 500*500mm
Indoor and outdoor die-casting aluminum cabinet.
P1.9/ P2.6/ P2.976 / P3.91
Cabinet size: 500*500mm
Connection without internal cable
Maintenance from front and back

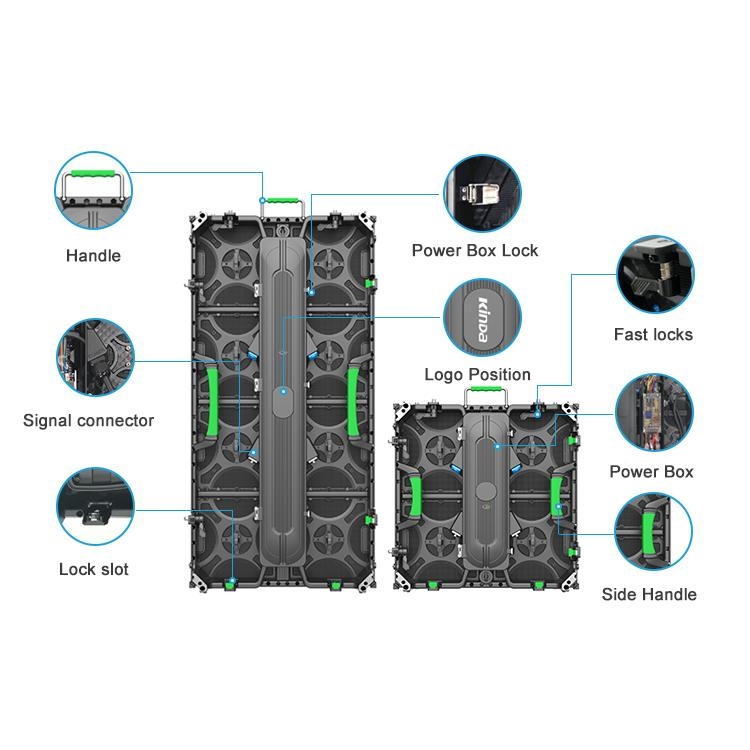

Perfect Cabinet Design Excellent product came in every detail of cabinet handle. Cabinet fixed slot, quick lock,
magnetic adsorption module, module installation button, power and signal connector, detachable power box.
Front and rear service adopts magnetic adsorption LED panel to make the cabinet accessible with front and rear design.

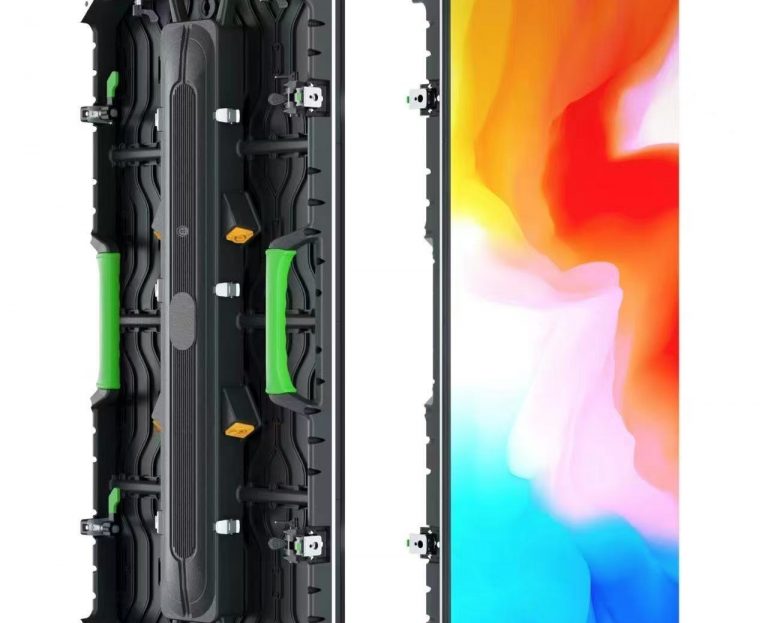

1000N1 500*1000mm
Indoor and outdoor die-casting aluminum cabinet.
P1.9/ P2.6/ P2.976 / P3.91
Cabinet size: 500*100mm
Internal cable connection
Rear-mounted maintenance
Excellent Heat Dissipation Adopts special heat dissipation and waterproof structure, which has excellent heat dissipation effect, excellent waterproof effect, fanless design and absolutely silent operation.
1000H1 500*1000mm
Indoor and outdoor die-casting aluminum cabinet.
P1.9/ P2.6/ P2.976 / P3.91
Cabinet size: 500*100*75mm
Connection without internal cable
Maintenance from front and back
Magnetic adsorption module, module installation button, power and signal connector, detachable power box.
IP65 dustproof and waterproof withstands severe weather conditions during outdoor activities.
Product parameters
| Product Series | INDOOR | OUTDOOR | |||||
| Pixel Pitch（mm） | 1.9 | 2.6 | 2.976 | 3.91 | 2.6 | 2.976 | 3.91 |
| LED Lamp Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Pixel Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ |
| Scan Frequncy | 1/32 | 1/32 | 1/28 | 1/16 | 1/24 | 1/28 | 1/16 |
| Module Size | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 | 500*500 |
| Cabinet Material | Die-casting aluminum | Die-casting aluminum | |||||
| Cabinet weight | 7kg | 7kg | 7kg | 7kg | 7.5KG | 7.5KG | 7.5KG |
| Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° |
| Grey Scale (bits) | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit |
| Frame Rate（HZ） | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Refresh Rate（HZ） | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Brightness（cd） | 800 | 800 | 800 | 1000 | 4500 | 5000 | 5500 |
| Input Voltage(V) | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
| Ave. Power Consumption（W/m2） | 160 | 160 | 160 | 160 | 220 | 220 | 220 |
| Max Power Consumption（W/m2） | 560 | 560 | 560 | 560 | 680 | 680 | 680 |
| IP Grade | IP30 | IP30 | IP30 | IP30 | IP65 | IP65 | IP65 |
| Control method | Sync / Async 4G / WIFI | Sync / Async 4G / WIFI | |||||
| Maintenance | Front & Rear Service | Resr service | |||||
| Working humidity | 10～85% RH | 10～95% RH | |||||
| Working Temperature | -30-60 °C | -30-60 °C | |||||
| Life span（H） | 100,000 | 100,000 | |||||
| Certificate | CCC/RoHS CE /EMC IFCC | CCC/RoHS CE /EMC IFCC | |||||
